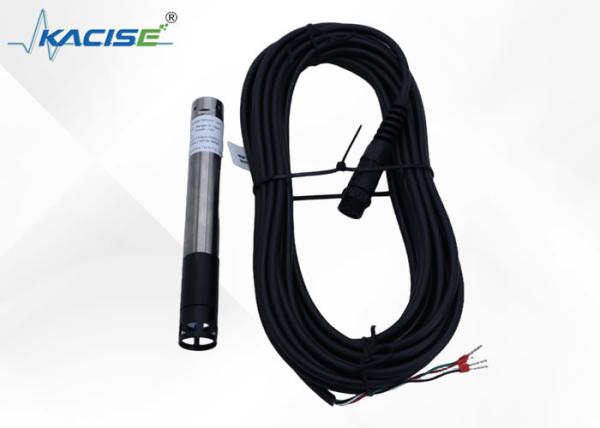

KWS700B Digital pH Sensor for Water

  • 1
  • 2
  • 3

Brand Name : KACISE

Model Number : KWS700B

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Accuracy : ±0.02pH

Resolution : 0.01

Temperature Range : 0 ~ 50℃

Work Pressure : ＜3 bar

Temp. Compensation : Automatic temp. compensation

Output : RS485, MODBUS protocol

Contact Now

KWS700B Digital pH Sensor for Water

1.Introduction

KACISE KWS700B Digital pH Sensor for Water is specifically designed for water - related applications. This digital sensor outputs via RS485 and follows the standard MODBUS protocol, enabling seamless networking. It doesn't require electrolyte, reducing maintenance and interference issues. The built - in temperature sensor adjusts for temperature changes automatically. With a measuring range of 0 - 14pH and high accuracy of ±0.02pH, it can accurately monitor the pH of water in water treatment plants, swimming pools, and more. Its durable POM + Titanium wetted part material ensures long - lasting use.

2.Feature

  • Digital sensor, RS-485 output, standard MODBUS protocol;
  • No electrolyte required, strong anti-interference, no need for frequent calibration;
  • Built-in temperature sensor, automatic temperature compensation;
  • Adopt high-performance industrial online electrode, can work stably for a long time;
  • Built-in calibration parameters, accurately calibrated at factory, can be directly installed and used.

3.Technical Specifications

Model KWS-700B
Measuring Range 0～14pH
Accuracy ±0.02pH
Resolution 0.01
Temperature Range 0 ~ 50℃
Work Pressure ＜3 bar
Temp. Compensation Automatic temp. compensation
Output RS485, MODBUS protocol
Assembly

Connect with multi-parameter host

(can be used separately when connect cable)
Power Consumption 0.3W (suggest 12～24VDC, ≥1A)
Wetted Part Material POM+Titanium
Installation Immersion mounting
Cable Length 10 m, customizable
Calibration Method Two/three point calibration
IP Grade IP68
